Mechanical Feed Tapping Units Synchro Tapper SSTB, SSTC
Mechanical Feed Tapping Unit allowing effective tapping with long stroke and equipped with fast approach and fast return mechanism.
Both units have been renewed by replacing induction motor with a Permanent Magnetic (PM) motor.
Both units have been renewed by replacing induction motor with a Permanent Magnetic (PM) motor.
Features of the PM motor
1. Energy Saving
Energy consumption can be reduced by approximately 20% compared to a three-phase induction motor with the same output.
2. Global Support
Not subject to high-efficiency motor regulations, making it easy to apply to equipment to be exported overseas from Japan.
Energy consumption can be reduced by approximately 20% compared to a three-phase induction motor with the same output.
2. Global Support
Not subject to high-efficiency motor regulations, making it easy to apply to equipment to be exported overseas from Japan.

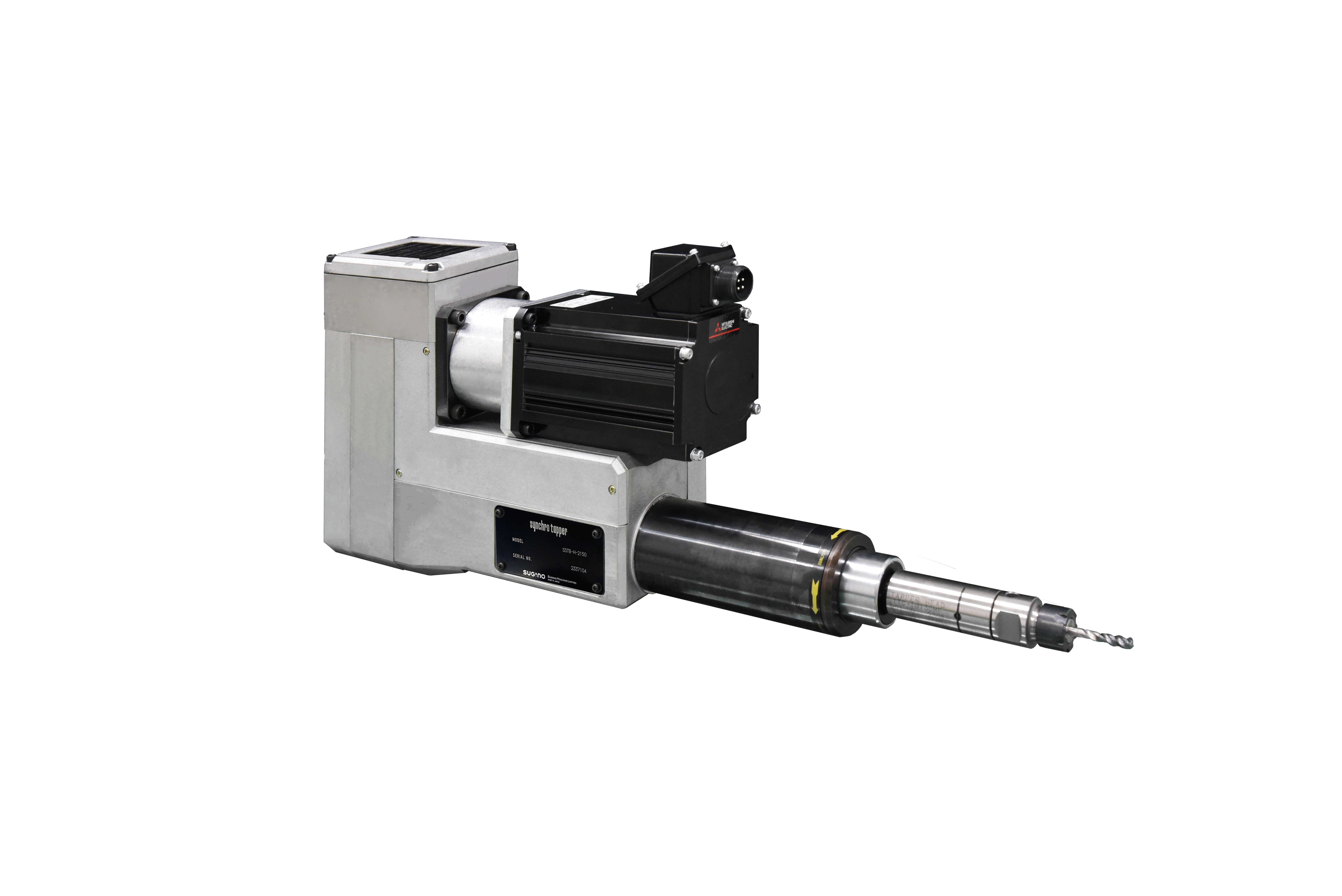

SSTB type is lightweight and compact unit with a high degree of freedom in mounting orientation, the dedicated machine can be space-saving. Tapping capacity with the spiral or point tap tool for Aluminium is M12 and Steel M10.
SSTB Leaflet download
SSTB Leaflet download

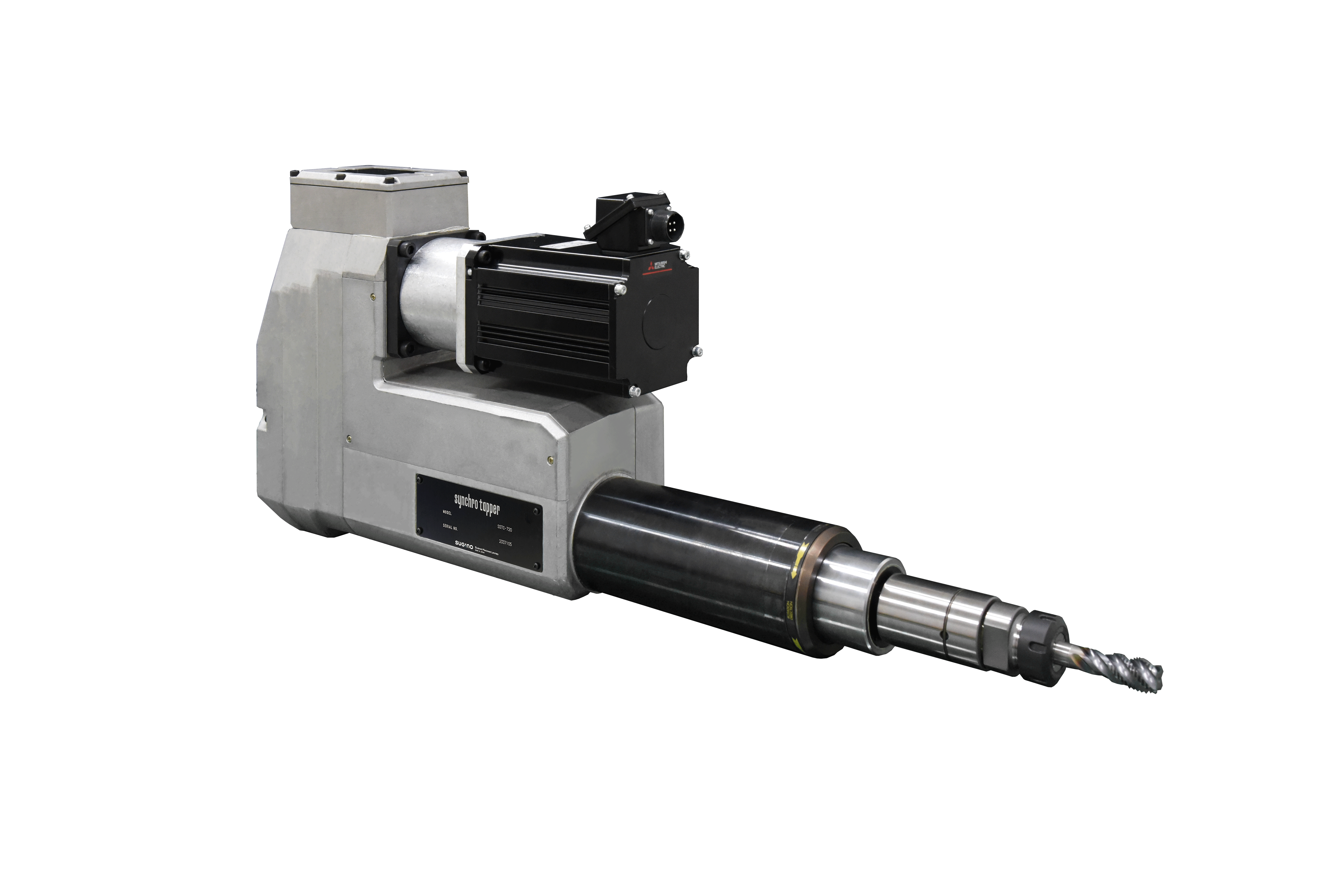

SSTC with long stroke specification makes it possible to avoid interference with peripheral equipment such as jigs. Tapping capacity with the spiral or point tap tool for Aluminium is M22 and Steel M16 with.
SSTC Leaflet download
SSTC Leaflet download
